Sarah (my wife) & I have a houseboat on a lake about an hour from our home.    There are many birds there including Buzzards, Bald Eagle, Osprey, Swan & Heron.  This must be where the Heron became my favorite bird.  So after deciding to sculpt one in an upcoming competition, I started gathering photos.

When gathering photos my objective is to capture just 1 aspect of the animal I am going to create.  These first 2 photos show very nice photos of a herons body, neck & head.



These 2 photos show the wings silhouette and details

Finally, this one shows their long skinny legs

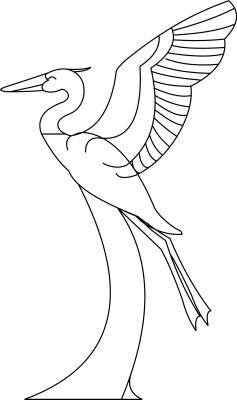

Using all of the above reference,  I made this drawing

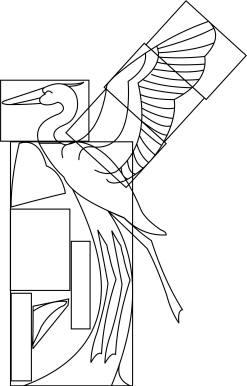

Figuring out where you are going to get the ice from & how to stack it is called the "Block Layout"

Spend a lot of time on your block layout,  make your design as large as possible while still maintaining proportions.  I kept reducing the size of my bird until all of the parts just fit in the block.  Notice that the delicate pieces have spares.  Can you see where to get an extra wing tip from?  Can you see where to get ice for 2 spare legs?

Wings have action, so I did this drawing to figure out how to stack the wings.  This may seem unnecessary, but I like it because during a short competition (this one was only 2 hours) valuable time can be spent thinking about how to stack the wings.  Having a diagram can hasten the process.

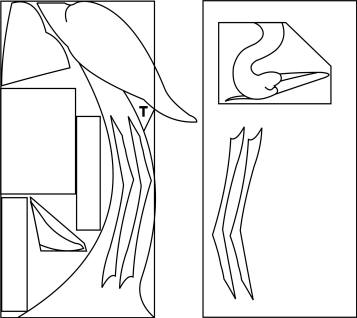

Next, I made the templates.  Notice the extra pieces on the right & the temporary support under the tail.  Temporary supports add a lot of strength to the piece while carving.  Carefully remove them towards the end of the competition.

    Heron
    1 Block  2 hours
Time
    Cut out Head & flip block

    Break down block

    Freeze on tail / angle cut base

    Freeze on wings

0.5   Freeze on head

1   Carve Bird

0.25   Carve base & legs

0.25   Clean

2


Do you know how to get to Carnegie Hall?  Practice, Practice, Practice

While practicing, jot down times when you reach certain benchmarks.  During the competition refer to you benchmarks.  If you are falling behind consider a slight modification to your design.  For instance if I ran short on time, which I did, I would not carve the spare legs completely.  I just left the ice in a safe place in case I needed it at the very end.  I would much rather have had 2 spare legs completely carved, but I had to make an adjustment.

  Tools required

  Templates Bucket
  Layout jig   brush
  Chainsaw   Tracing bit
  X cord & pigtails 1/4" die grinder
  Wing Alum Foam
  Iron   12 x 12 alum
  Junichi   Sand paper
  Lg die grinders small bubble
  Shaper   vee bit
  Face burr   eye ball maker
  Syringe   marker
  Green sander
  Sm chisel
  Torch


Do you know how to get to Carnegie Hall?  Practice, Practice, Practice

I practiced the heron twice.

As you practice, jot down all of the tools you used.  By doing this,  you will know exactly what tools to pack for that competition.

The finished piece.  It was very difficult to photograph because of a large snow bank right behind it.  Sarah had to crouch way down to get this photo.  This sculpture earned a gold medal :)
