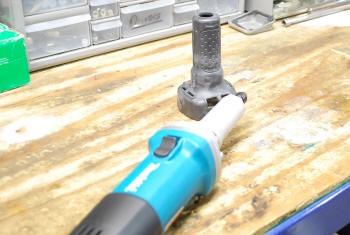

Remove the rubber sleeve from the neck of the die grinder

Remove the 4 screws that hold the neck on

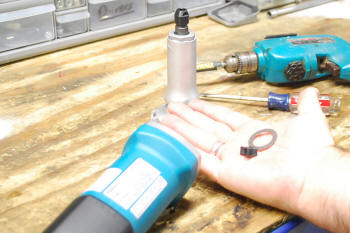

set aside the plastic coupler & large washer

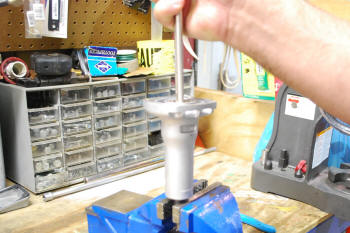

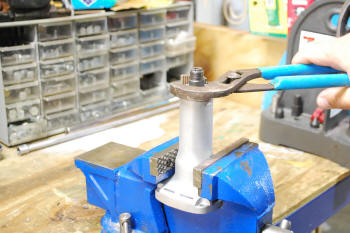

While holding the neck in a vice, unscrew the collar nut

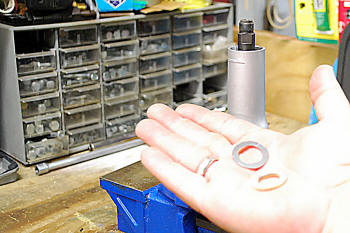

Set aside the smaller washer & felt washer that were behind the collar nut

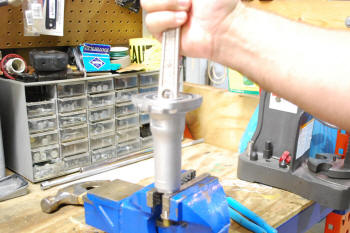

Using the handle of the crescent wrench, unscrew the butterfly nut

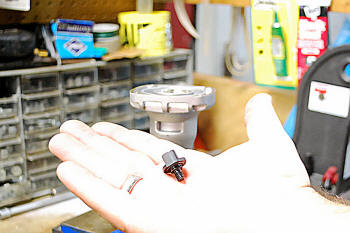

Set aside the butterfly nut

Place new shaft in the neck.

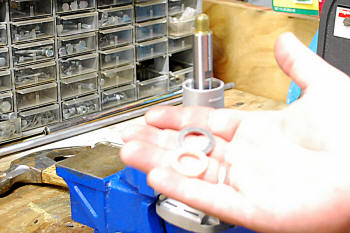

Place metal washer and felt washer into neck, then reinstall collar nut.

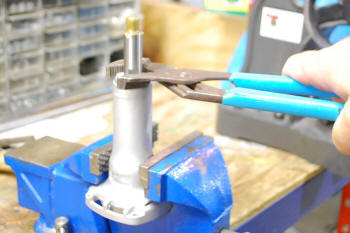

Reinstall butterfly nut.  Note the vice is holding the shaft

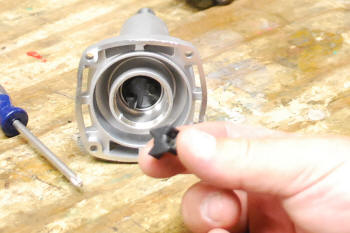

Reinsert plastic coupler

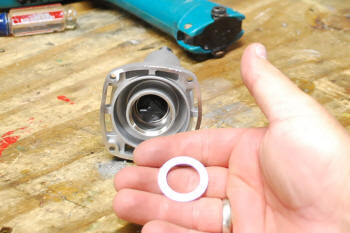

Place large washer in neck

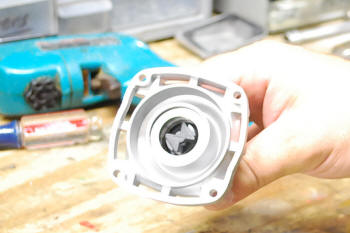

How it looks before reattaching the neck

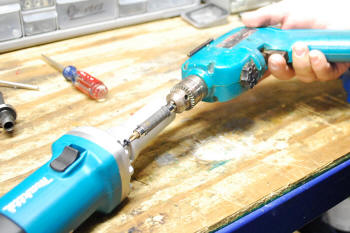

Reattach the neck with 4 screws, be careful to line up exhaust vents to the side

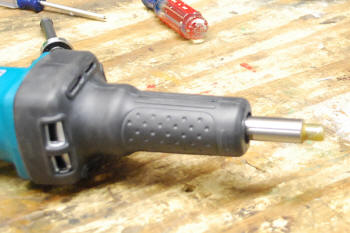

Slide the rubber cover back onto the neck
